Description
Product Description
|
Measurement parameters
|
|||
|
Parameters name
|
Air temperature, Air relative humidity,CO2 3 IN 1 sensor
|
||
|
Parameters
|
Measure range
|
Resolution
|
Accurancy
|
|
Air temperature
|
-40-120℃
|
0.1℃
|
±0.2℃（25℃）
|
|
Air relative humidity
|
0-100%RH
|
0.1%
|
±3%RH
|
|
CO2
|
0~2000,5000,10000ppm(Optional)
|
1ppm
|
±20ppm
|
|
Technical parameter
|
|||
|
Stability
|
Less than 1% during the life of the sensor
|
||
|
Response time
|
Less than 1 second
|
||
|
Working current
|
85mA@5V,50mA@12V,40mA@24V
|
||
|
Output
|
RS485, MODBUS communication protocol
|
||
|
Housing material
|
ABS
|
||
|
Working environment
|
Temperature -30 ～ 70 ℃, working humidity: 0-100%
|
||
|
Storage conditions
|
-40 ~ 60 ℃
|
||
|
Standard cable length
|
2 meters
|
||
|
The farthest lead length
|
RS485 1000 meters
|
||
|
Protection level
|
IP65
|
||
|
Wireless transmission
|
|||
|
Wireless transmission
|
LORA / LORAWAN, GPRS, 4G,WIFI
|
||
|
Mounting Accessories
|
|||
|
Stand pole
|
1.5 meters, 2 meters ,3 meters higth, the other higth can be customize
|
||
|
Equiment case
|
Stainless steel waterproof
|
||
|
Ground cage
|
Can supply the matched ground cage to burried in the ground
|
||
|
Cross arm for the install
|
Optional(Used in thunderstorm places)
|
||
|
LED display screen
|
Optional
|
||
|
7 inch touch screen
|
Optional
|
||
|
Surveillance cameras
|
Optional
|
||
|
Solar power system
|
|||
|
Solar panels
|
Power can be customized
|
||
|
Solar Controller
|
Can provide matched controller
|
||
|
Mounting brackets
|
Can provide the matched bracket
|
||
|
Software and datalogger
|
|||
|
Software
|
We can supply free server and software to see the realtime data
|
||
|
Datalogger
|
The datalogger store the data in U disk in excel format
|

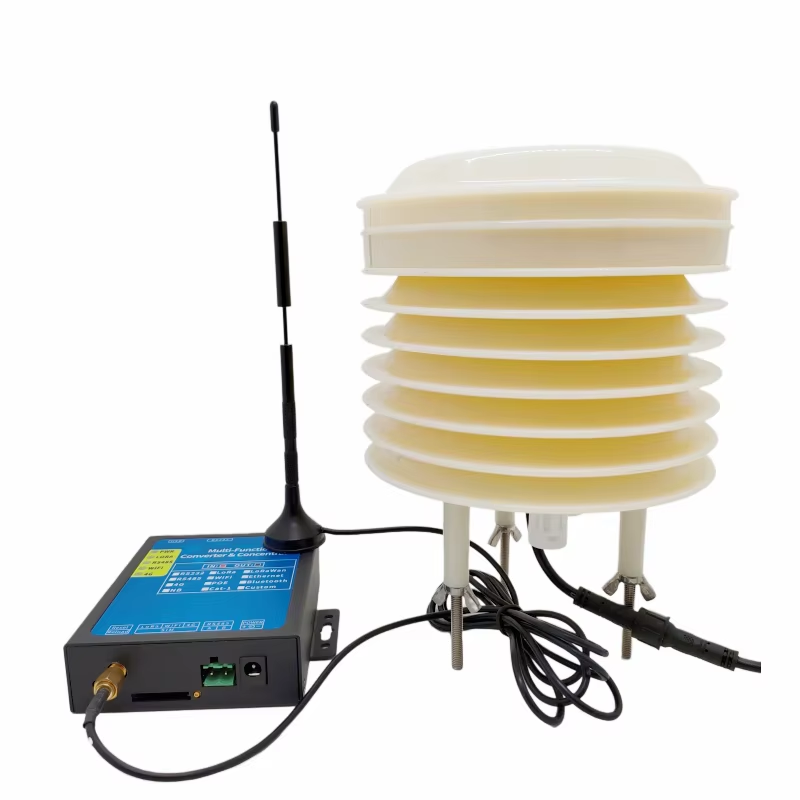

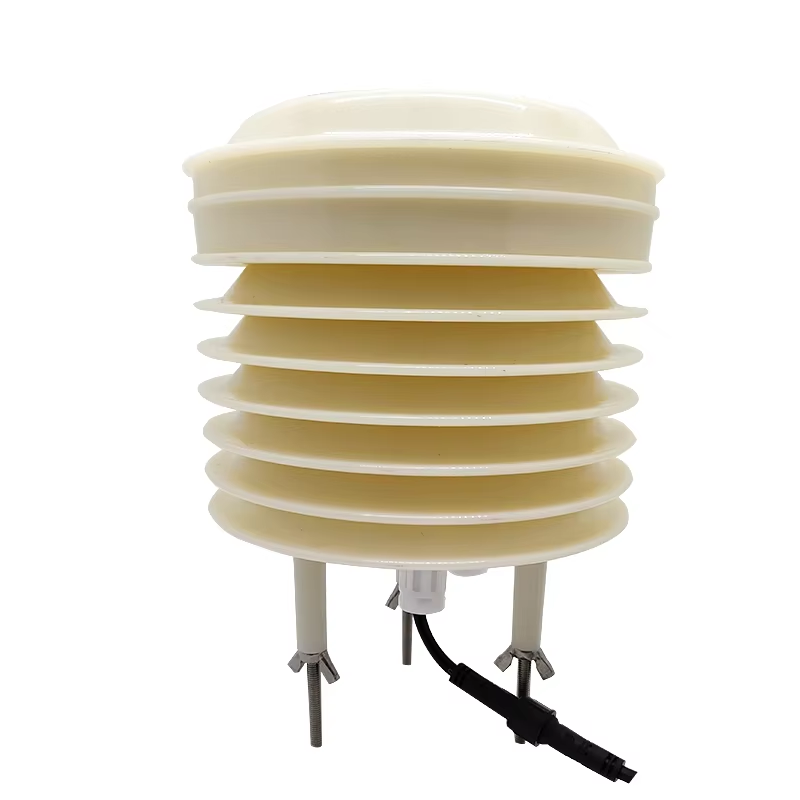

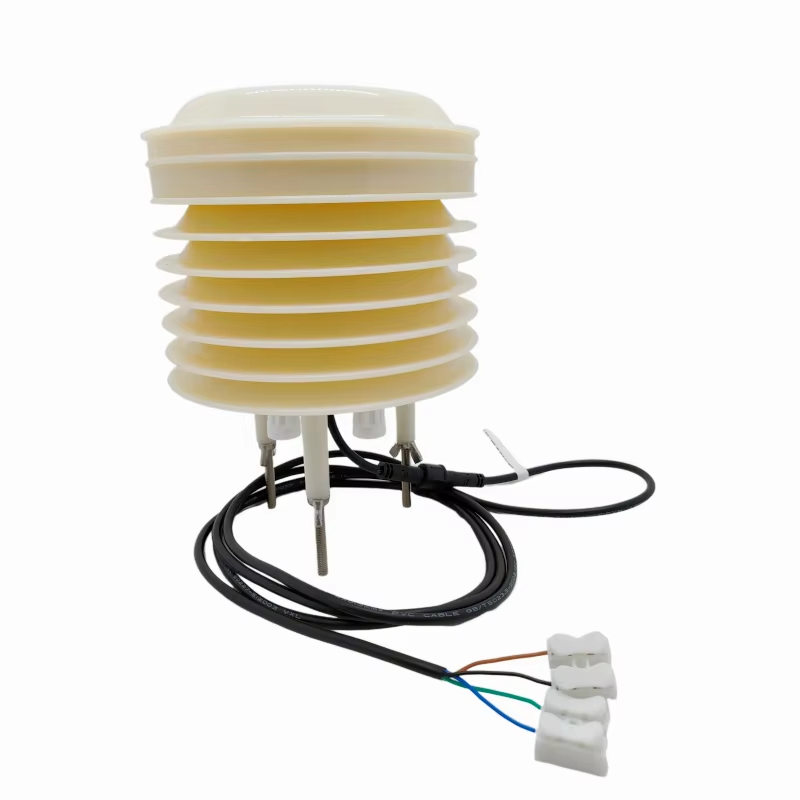

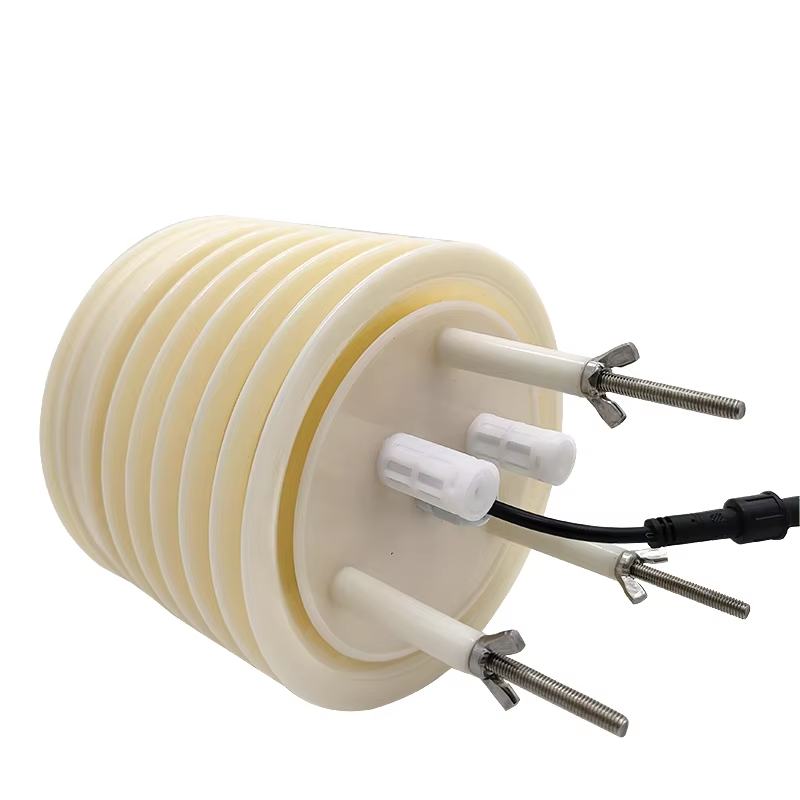

Detailed Images
Related Products
Packing&Shipping
Company Introduction
Honde Technology CO.,LTD founded in the year of 2011, adheres to the business philosophy of technology making our life better. Our company is an IOT company dedicated to the R&D, production, sales of smart water equipment, smart agriculture equipment and smart environmental equipment and the related solutions provider.The products sell well in more than 70 countries, serve thousands of customers around the world, and have received unanimous praise. We are looking forward to working with you to make our life better due to the blessing of science and technology.
FAQ
Q: How can I get the quotation? A: You can send the inquiry on Alibaba or the below contact information, you will get the reply at once. Q: What’s the main characteristics of this 3 in 1 sensor? A: It is easy for installation and can measure the Air temperature and Air humidity CO2 at the same time , 7/24 continuous monitoring. Q:Can we choose other desired sensors? A: Yes, we can supply the ODM and OEM service, the other required sensors can be intergrated in our present weather station. Q:Could I get samples? A:Yes,we have materials in stock to help you to get the samples as soon as we can. Q:Do you supply tripod and solar panels? A: Yes, we can supply the stand pole and the tripod and the other install accessaries, also the solar panels, it is optional. Q: What’s the common power supply and signal output? A: Common power supply and signal output is DC: 12-24V, RS485. The other demand can be custom made. Q: How can I collect data? A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless trnasmission module.
Q: Can we have the datalogger?
A: We can send the matched datalogger which can store the data in excel or text in the U disk.
Q: Do you have the matched free software?
A: Yes, we can send the free software to see the realtime data and also can download the history data from our website, just need send the data to our server by our wireless modules. Q: What’s the standard cable length? A: Its standard length is 3m. But it can be customized, MAX can be 1KM. Q: What’s the lifetime of this Mini Ultrasonic Wind Speed Wind Direction Sensor? A: At least 5 years long. Q: May I know your warranty? A: Yes, usually it’s 1 year. Q:What’s the delivery time? A: Usually, the goods will be deliveried in 3-5 working days after receiving your payment. But it depends on your quantity.
