Description
Product Description
|
Product Name
|

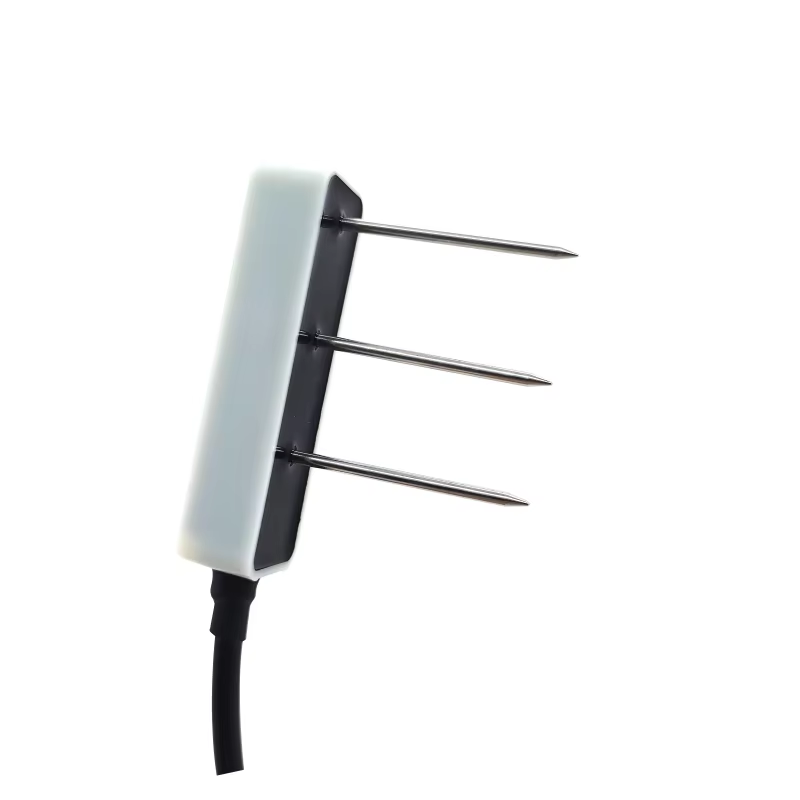

Soil Temperature Moisture EC Sensor
|
|
Probe type
|
Probe electrode
|
|
Measurement parameters
|
Soil Temperature Moisture EC
|
|
Moisture measure range
|
Optional range: 0-50%, 0-100%
|
|
Resolution
|
0.03% within 0-50%, 1% within 50-100%
|
|
Accuracy
|
2% within 0-50%, 3% within 50-100%
|
|
Temperature range
|
-40~80℃
|
|
Resolution
|
0.1℃
|
|
Accuracy
|
±0.5℃
|
|
EC measure range
|
Optional range: 0-5000us/cm, 10000us/cm, 20000us/cm
|
|
Resolution
|
0-10000us/cm 10us/cm, 100,000-20000us /cm 50us/cm
|
|
Accuracy
|
±3% in the range of 0-10000us/cm; ±5% in the range of 10000-20000us/cm
|
|
Outputsignal
|
A:RS485 (standard Modbus-RTU protocol, device default address: 01)/4-20mA/0-2V
|
|
Output signal with wireless
|
A:LORA/LORAWAN
|
|
B:GPRS
|
|
|
C:WIFI
|
|
|
D:4G
|
|
|
Cloud Server and software
|
Can supply the matched server and software to see real time data in PC or mobile
|
|
Supply voltage
|
3.9-30V/DC/12-30V DC/2.7-16V DC/2-5.5V DC
|
|
Working temperature range
|
-40 ° C ~ 85 ° C
|
|
Measurement principle
|
Soil moisture FDR method, soil conductivity AC bridge method
|
|
Measurement mode
|
The soil was directly tested by in-situ insertion or immersion into culture medium, water and fertilizer integrated nutrient solution
|
|
Probe material
|
Special anticorrosive electrode
|
|
Sealing material
|
Black flame retardant epoxy resin
|
|
Waterproof grade
|
IP68
|
|
Cable specification
|
Standard 2 meters (can be customized for other cable lengths, upto 1200 meters)
|
|
Connection mode
|
Pre-installed cord end terminal
|
|
Overall dimension
|
88*26*71mm
|
|
Electrode length
|
50mm
|
Details Images
Feature 1

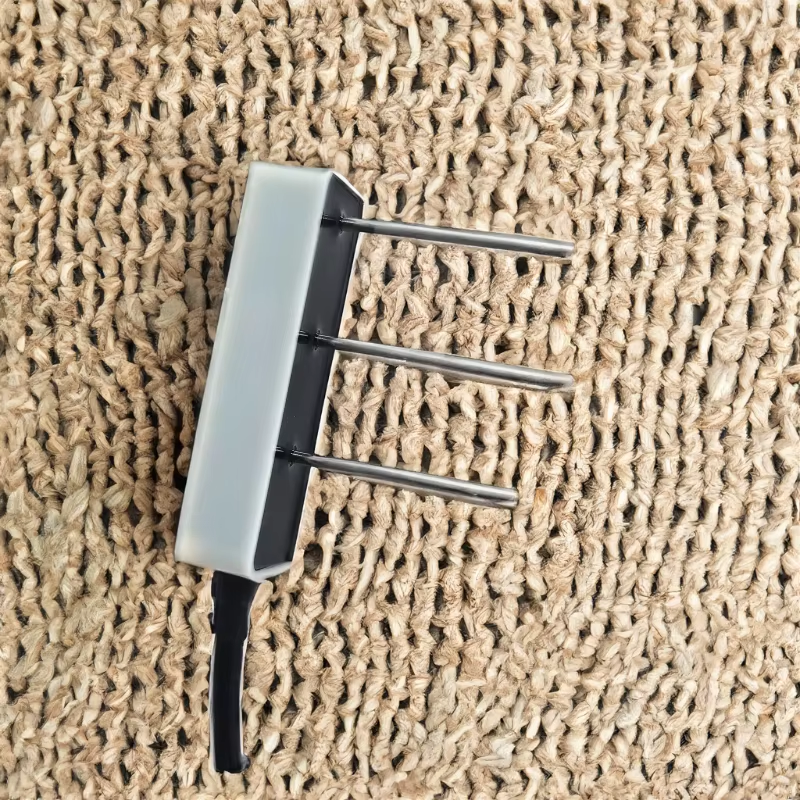

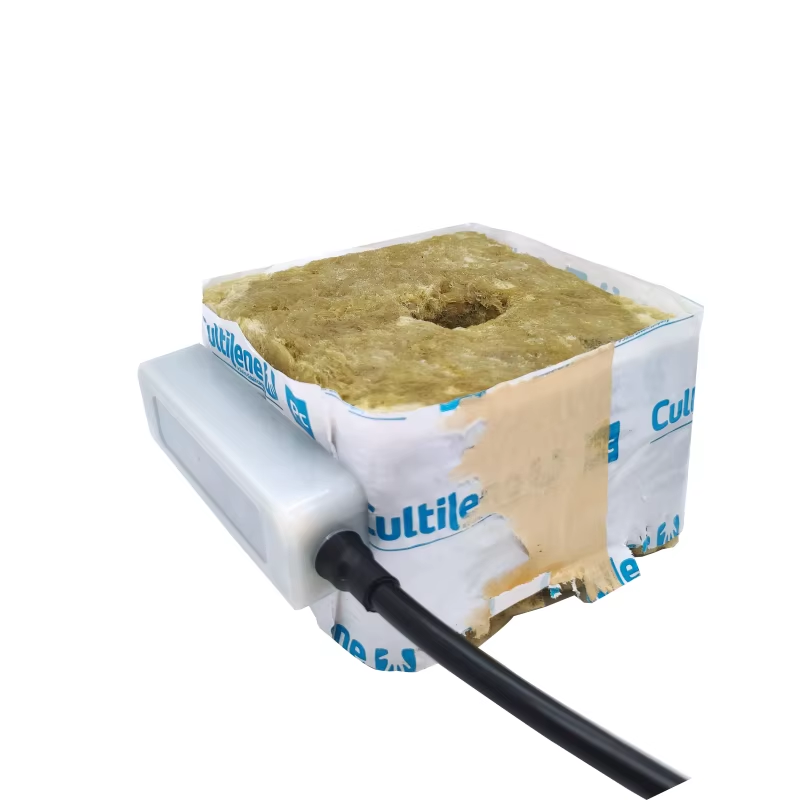

Can measure different substrates, including soil, coconut shell, Cultiwool, etc.
It can also be used for the conductivity of water and fertilizer integrated solution, as well as other nutrient solution and matrix
Feature 2
Can measure the soil temperature and humidity EC three parameters at the same time;
A variety of output modes are optional, analog voltage output, current output, RS485 output, SDI12 output
Feature 3
IP68 protection grade, completely sealed, acid and alkali corrosion resistance, can be buried in soil or directly into the water for long-term dynamic detection
Feature 4

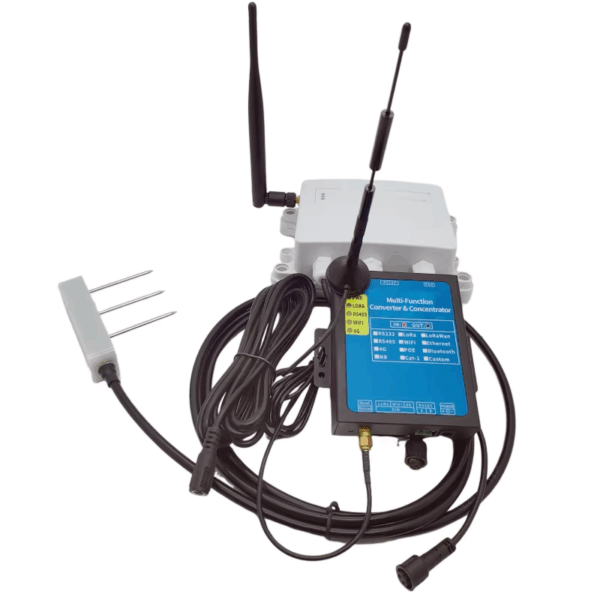

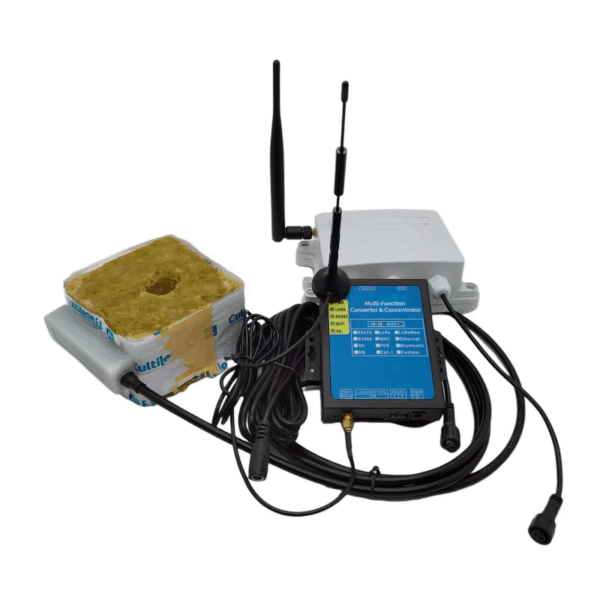

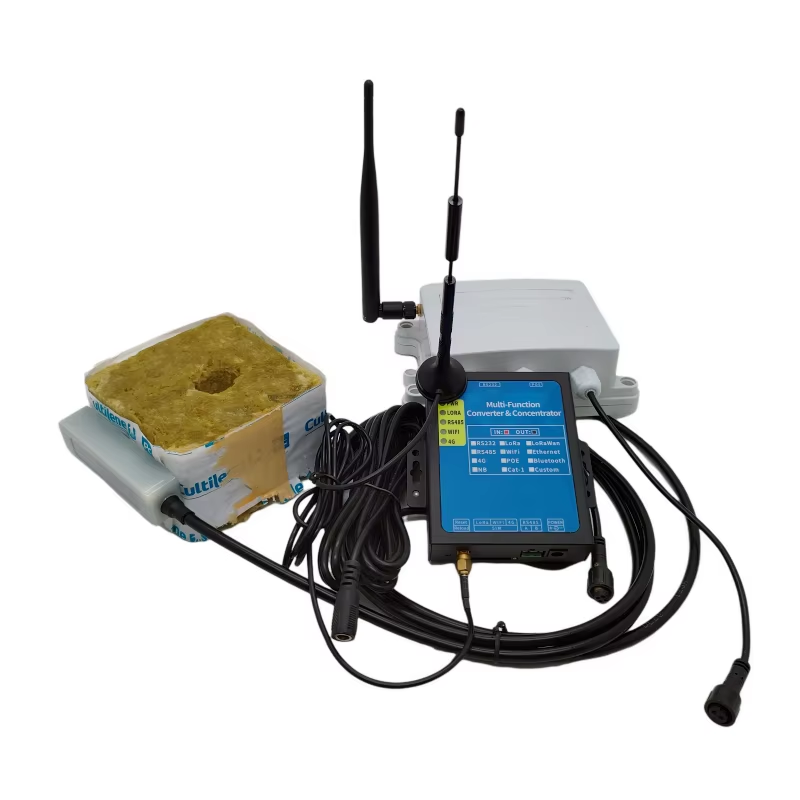

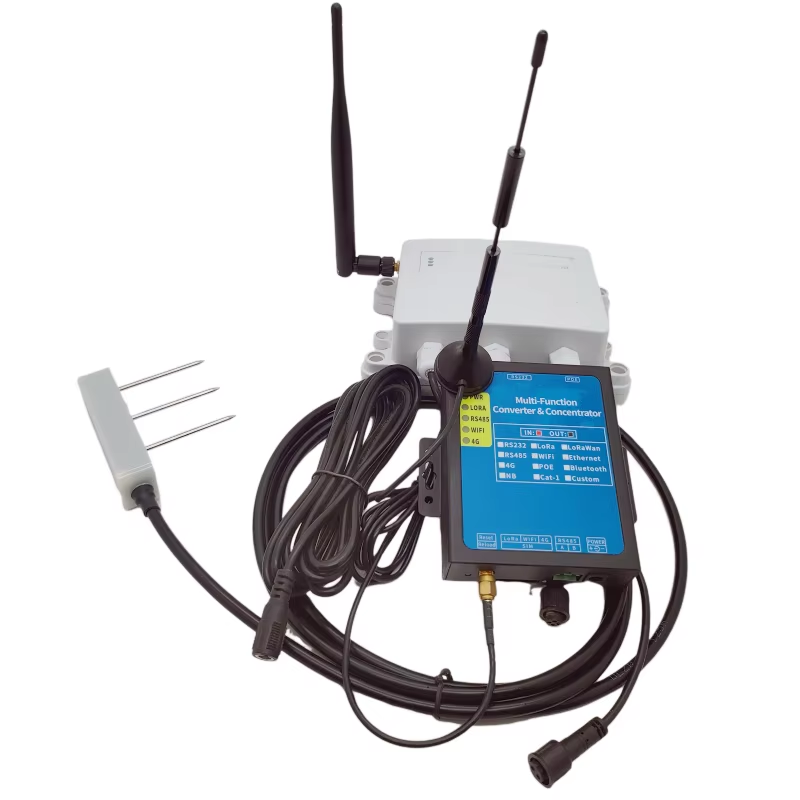

Can integrate all kinds of wireless
module, GPRS/4g/WIFI/LORA/LORAWAN and form a complete set of servers and software, and view the real-time data and historical data
Advantage
Advantage 1: Send the test kits totally free

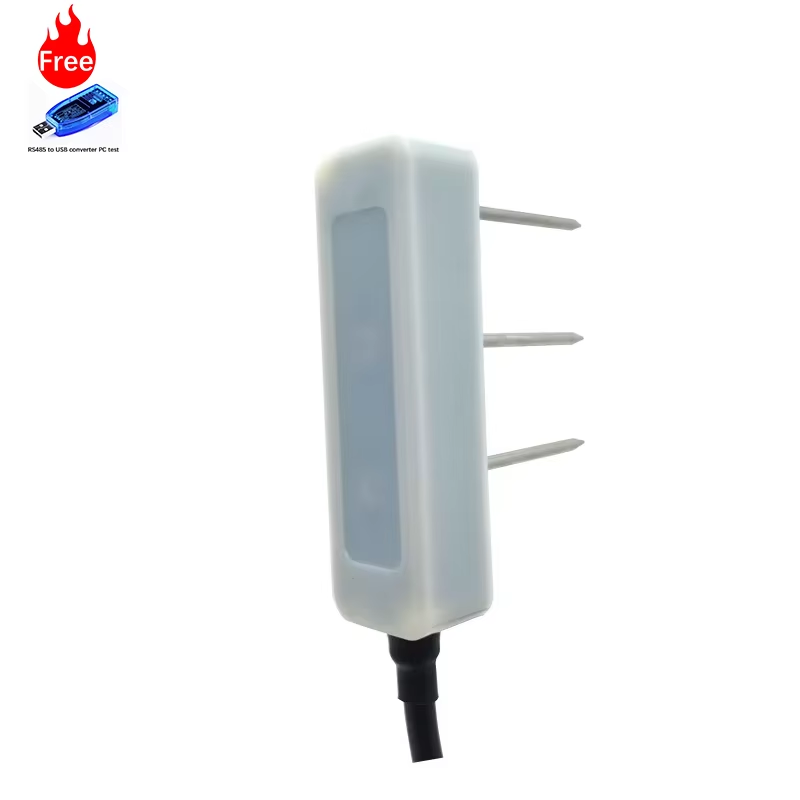

Send a RS485 to USB converter freely
The converter can connect the sensor to the PC end directly
Send Serial debugging software in English version freely
So you can test the soil data directly when you receive the sample and no need other accessaries.
Advantage 2: Terminal end with the Screen and the Datalogger with SD card can be customizable.
*Detailed price please consult the customer service.
Advantage 3: The LORA/ LORAWAN/ GPRS /4G /WIFI wireless module can be customizable.
Advantage 4: Supply the matched cloud server and software to see real time data in PC or Mobile
*Detailed price please consult the customer service.
Product selection table
Related Products
Packing&Shipping
Company Introduction
Honde Technology CO.,LTD founded in the year of 2011, the company is an IOT company dedicated to the R&D, production, sales of smart water equipment, smart agriculture and smart environmental protection and the related solutions
provider.Adheres to the business philosophy of making our life better , we have found the Product R&D Center the System Solution Center.
FAQ
Q: How can I get the quotation?
A: You can send the inquiry on Alibaba or the below contact information, you will get the reply at once. Q: What’s the main characteristics of this soil sensor? A: It can measure the three parameters of soil temperature and humidity EC at the same time, and can measure different substrates, including soil, coconut shell, Cultiwool, etc. It is good sealing with IP68 waterproof, can totally buried in the soil for the 7/24 continuous monitoring. Q:Could I get samples? A:Yes,we have materials in stock to help you to get the samples as soon as we can. Q: What’s the common power supply and signal output? A: The power supply 3.9-30V/DC/12-30V DC/2.7-16V DC/2-5.5V DC can be choosen according to your requirements. .Output:RS485 (standard Modbus-RTU protocol, device default address: 01)/4-20mA/0-2V/SDI12. Q: How can I collect data? A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched data logger or screen type or LORA/LORANWAN/GPRS/4G wireless transmission module if you need.
A: You can send the inquiry on Alibaba or the below contact information, you will get the reply at once. Q: What’s the main characteristics of this soil sensor? A: It can measure the three parameters of soil temperature and humidity EC at the same time, and can measure different substrates, including soil, coconut shell, Cultiwool, etc. It is good sealing with IP68 waterproof, can totally buried in the soil for the 7/24 continuous monitoring. Q:Could I get samples? A:Yes,we have materials in stock to help you to get the samples as soon as we can. Q: What’s the common power supply and signal output? A: The power supply 3.9-30V/DC/12-30V DC/2.7-16V DC/2-5.5V DC can be choosen according to your requirements. .Output:RS485 (standard Modbus-RTU protocol, device default address: 01)/4-20mA/0-2V/SDI12. Q: How can I collect data? A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched data logger or screen type or LORA/LORANWAN/GPRS/4G wireless transmission module if you need.
Q: Can you supply the server and software to see the real time data remotely?
A: Yes, we can supply the matched server and software to see or download the data from your PC or Mobile. Q: What’s the standard cable length? A: Its standard length is 2 meters. But it can be customized, MAX can be 1200 meters. Q: May I know your warranty? A: Yes, usually it’s 1 year. Q:What’s the delivery time? A: Usually, the goods will be delivery in 1-3 working days after receiving your payment. But it depends on your quantity.
