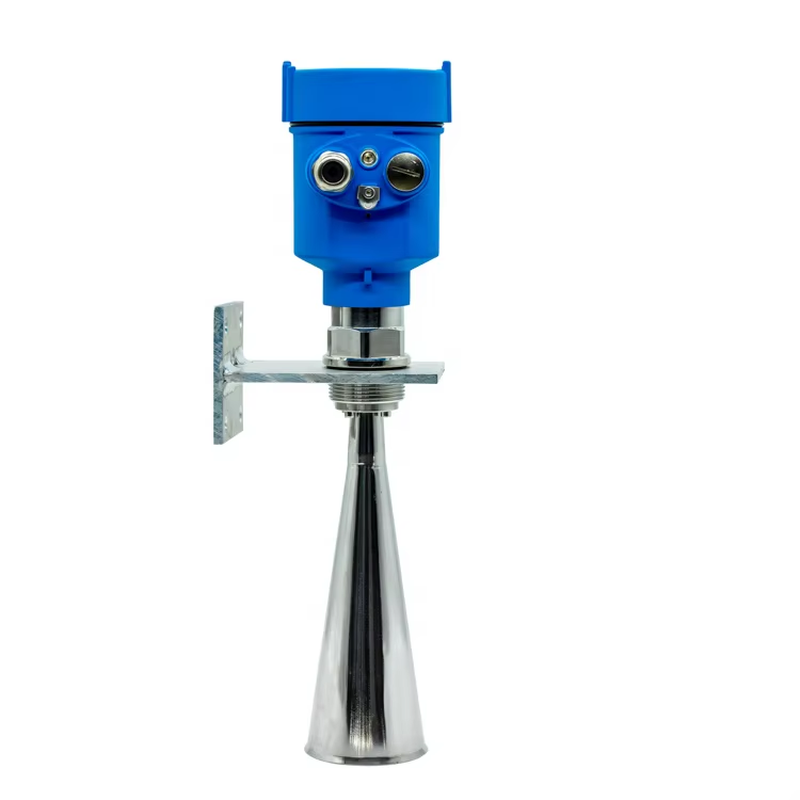

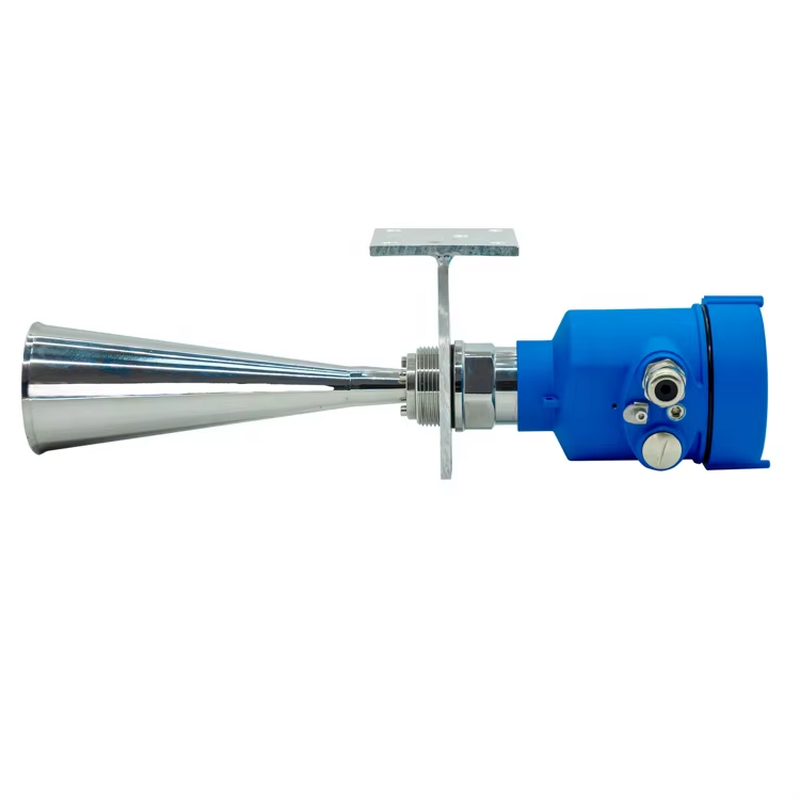

Description
* Small antenna size, easy to install.
* Non-contact radar, no wear, no pollution.
* Almost no corrosion, bubble effect; almost not affected by water vapor in the atmosphere, the temperature and pressure changes.
* Serious dust environment on the high-level meter work has little effect.
* A shorter wavelength, the reflection of solid surface inclination is better.
* Beam angle is small, the energy is concentrated, which can enhance the ability of echo and avoid interference.
* The measuring range is smaller, for a measurement will yield good results.
* High signal-to-noise ratio, the level fluctuation state can obtain better performance.
* High frequency, measurement of the solid and low dielectric constant of the best choice.
* Non-contact radar, no wear, no pollution.
* Almost no corrosion, bubble effect; almost not affected by water vapor in the atmosphere, the temperature and pressure changes.
* Serious dust environment on the high-level meter work has little effect.
* A shorter wavelength, the reflection of solid surface inclination is better.
* Beam angle is small, the energy is concentrated, which can enhance the ability of echo and avoid interference.
* The measuring range is smaller, for a measurement will yield good results.
* High signal-to-noise ratio, the level fluctuation state can obtain better performance.
* High frequency, measurement of the solid and low dielectric constant of the best choice.
|
Measurement medium ：
|
Liquid
|
|
Measurement range：
|
30m
|
|
Process connect ：
|
G1/2/ bracket/ flange
|
|
Process temperature：
|
-40~100℃
|
|
Process pressure：
|
Normal pressure
|
|

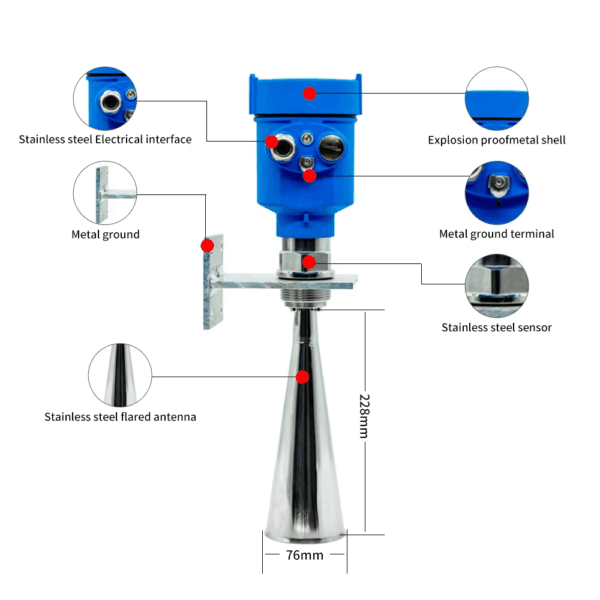

Antenna material：
|
Stainless stell
|
|
Accuracy：
|
±3mm
|
|
Level of protection：
|
IP67/ IP65
|
|
Center frequency：
|
26GHz
|
|
Power supply：
|
DC(9-24V)
|
|
Outer shell：
|
Aluminum/stainless steel
|
|
Signal putout：
|
RS485 Modbus
|
This series of radar level meter adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 80 meters. Antenna is optimized further processing, the new fast microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.
