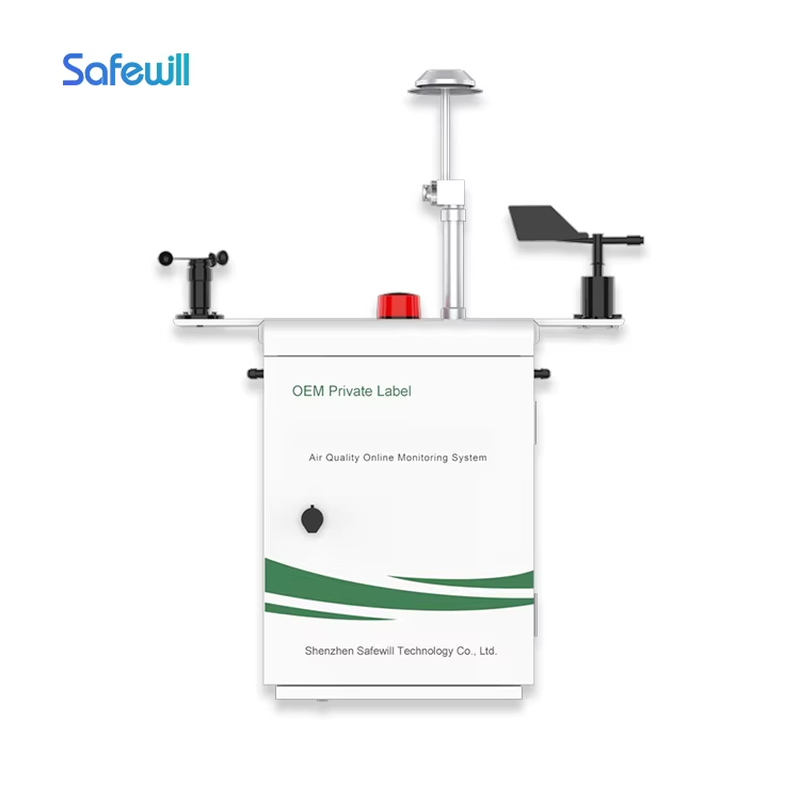

The air quality monitoring station is specially designed to monitor the concentration of various gases in the outdoor environment.Air quality monitoring station, also known as air station.The function of the air station is to sample, measure and analyze the pollutants in the atmosphere and air at fixed points, continuously or regularly. In order to monitor the air, a number of air stations are generally set up in a key environmental protection city. Multi-parameter automatic monitoring instruments are installed in the stations for continuous automatic monitoring, and the monitoring results are stored and analyzed in real time to obtain relevant data.The air quality monitoring station is the basic platform for air quality control and reasonable assessment.
Details Images
Details Images
Product Paramenters
Product Paramenters
|
Gas module
|
O3:0-500ppb
NO2:0-500ppb SO2:0-500ppb CO:0-50ppm VOC:0-10ppm H2S:0-10ppm CO2:0-100%vol |
|
Resolution
|
O3:1ppb
NO2:1ppb SO2:10ppb CO:0.1ppm VOC:0.1ppm H2S:0.1ppm NH3:0.1ppm CO2:0.1%Vol |
|
Dust Measuring range
|
PM2.5:0~200ug/m3
PM10: 0~2000ug/m3 TSP: 0~20000ug/m3 |
|
Resolution
|
PM2.5:1ug/m3
PM10:1ug/m3 TSP: 1ug/m3 |
|
Meteorological
monitor(Optional) |
Temperature: -30℃~50℃
Humidity: 0~95%Rh Wind speed: 0~30m/s Wind direction: 0~360° Noise30dB(A)~130 dB(A) barometric pressure:300—1100hPa |
|
Output interface
|
RS485, GPRS
|
|
Power supply
|
220V
|
|
Sampling time
|
The standard time is 10 minutes or
customized |
|
Installation type
|
Vertical column or Wall-mounted
|
|
Alarm method:
|
Sound and light alarm, double color LED lamp, sound or 75 db @ 25 cm
|
|
Operation method:
|
Key operation(Life time of keys:2000000 times)
|
|
Material of host:
|
ABS
|
|
Working temperature:
|
‘-20℃~+50℃
|
|
Working humidity:
|
10%RH ~95%RH,No condensation
|
|
Working pressure:
|
86kPa~106kPa
|
|
Battery:
|
Built-in high-performance lithium-ion batteries, import core: nominal voltage 3.7 VDC, 2500 mah
|
|
Charger:
|
Travel charger with USB interface, USB power supply DC5V, charging temperature range: 0 ℃ to 40 ℃
|
|
Charging time:
|
≤6 hours, total charged time 12 hours
|
|
Continuous working time:
|
≥12 hours
|
|
Dimension:
|
135x65x35mm(LxWxH)
|
|
Weight
|
About 0.46Kg
|
|
Protection grade:
|
IP66
|
|
Quality assurance:
|
One year warranty, the warranty period free maintenance, sensitive components such as sensors, according to the standard of
sensor manufacturers. |
|
Weight
|
About 1.5Kg
|
|
Warranty
|
12months
|
