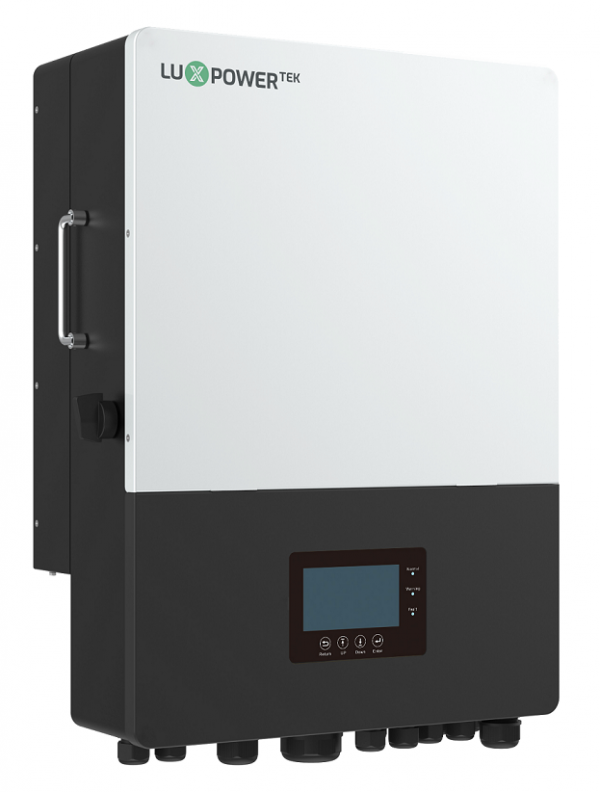

LUXPOWER Hybrid Inverter LXP-LB-EU-12K

130,000.00

Description

Luxpower 12kw Smart Hybrid Single phase PV inverter, 3 Mppt, IP65, with DC Switch, Wifi Dongle, Limiter. 5 years manufacturing warranty



3 MPPTs, Max. 18kW of PV input
12kW UPS output for backup during power cuts
Supports up to 10pcs in parallel for on/o‡ grid
On/o‡ grid seamless switching

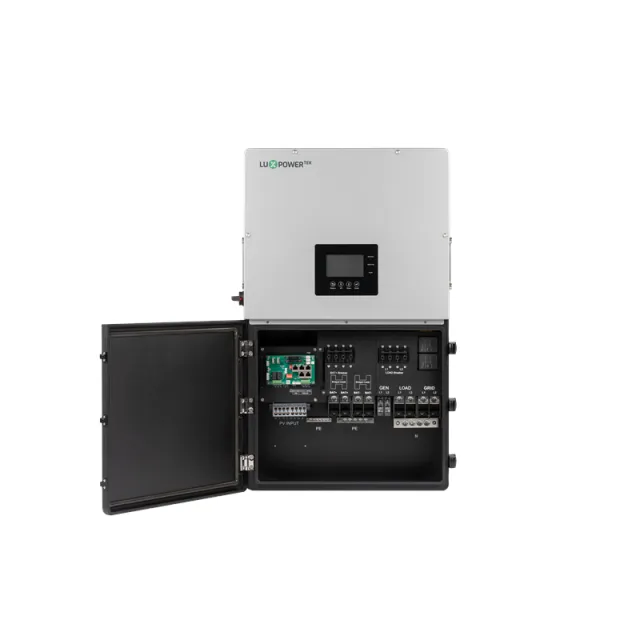

Separate port for
-Generator connection
▪ Auto generator control
▪ Support generator exercise
▪ Support generator boost function
-Or smart load connection and auto control
-Or AC coupling function

Additional information

Type

Hybrid

Phase Type

Single Phase

Nominal AC Output Power

11500W

Max. DC Input Power

18000W

Nominal DC Input Voltage

360V.d.c

DC Input Voltage Range

100~600 V.d.c

AC Voltage Range

180 – 270V.a.c

Max. Efficiency

97.50%
