Description

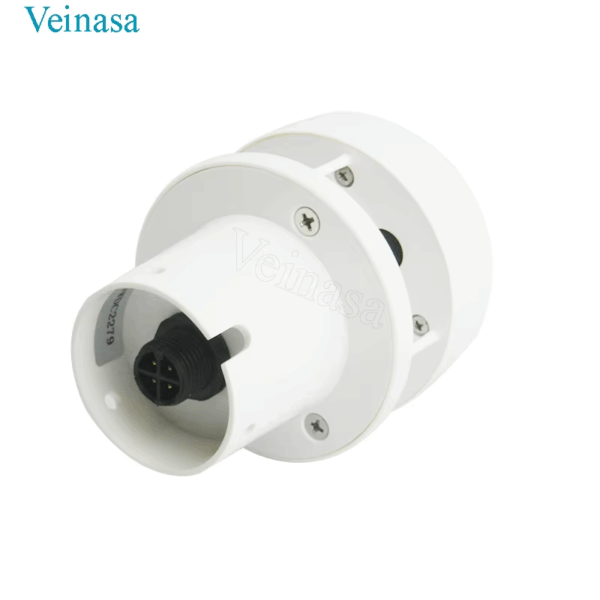

Veinasa-CXS02B 5V Input Compact Weather Station Mini Weather Station Direction Wind Anemometer is a wind speed and firection measuring instrument that uses ultrasonic waves to travel in the air to measure wind speed and direction. This mini weather station uses a low-power chip inside and consumes only 0.2W. It is especially suitable for use in solar or battery-powered environments where power consumption is relatively high.
to the new technology and new technology, the structure is more compact and compact. Optional temperature and air pressure modules are also available. The shell is made of metal cast aluminum and ASA, which is convenient for users to use in different environments.
|
Measurement range
|
Accuracy
|
Resolution
|
|
|
Wind Speed
|
0 – 40m/s
|
±3%
|
0.1m/s
|
|
Wind Direction
|
0 – 359°
|
±3°
|
1°
|
|
Digital Output
|
RS232,RS485,SDI-12(Choose one)
|
||
|
Communication baud rate
|
4800 – 19200
|
||
|
Protocol
|
ModBus,NMEA-0183
|
||
|
Protection level
|
IP65
|
||
|
Operating temperature/humidity
|
-40℃ – +60℃;
|
||
|
0 – 100%
|
|||
|
Power Demand
|
VDC: 5-30V
|
||
|
Power
|
0.2W
|
||
|
Dimensions / weight
|
Φ82×108mm
|
||
|
0.2kg
|
|||
|
Material
|
ASA engineering plastic
|
Characteristics of Veinasa-CXS02B 5V Input Compact Weather Station Mini Weather Station Direction Wind Anemometer :
Maintenance free and long service life
No moving parts, zero wear
Engineering plastic or aluminum alloy casing, lighter
Using ultrasonic probe reflection type, the structure is more compact
Acoustic phase compensation technology with higher precision
Applications of Veinasa-CXS02B 5V Input Waterproof Anemometer Direction Wind Anemometer Intelligent Anemometer：
Thiscompact weather station mainly used in family weather stations, farmland meteorological detection, tower crane wind speed monitoring, hydraulic engineering and photovoltaic power plant to measuring wind speed and direction.
Q: Are you a factory/manufacturer? A: Yes, we are professional factory/manufacturer of weather station and relative weather sensors. We also have hot sale and widely used weather sensor Veinasa-CXS03A. Q: What’s the main characteristics of this RS485 Ultrasonic Sensor? A: Congratulations, the CXS02B adopts a low-power chip inside and the lowest power consumption is only 0.2W. It is very suitable to be used for solar energy or battery power environment with high power consumption requirement, factory price but amazing quality. Q: Can it add/integrate other parameters? A: Yes it can add/integrate other parameters like air pressure, temperature, relative humidity, we have this existing model Veinasa-THPRW-03.
Q: What’s the common power supply and signal output? A: Common power supply and signal output is DC5-30V, RS485. But we can customize for you as demands. Q: How can I collect data? A: If you have your own data logger, you only need to buy our sensor and meanwhile we send you communication protocol. If you do not have, we can add our data logger for you, also provided with English software, which can help you read, inquire and download data. Q: What’s the lifetime of this Ultrasonic Wind Sensor? A: At least 5 years long. Every sensor has its own calibration certificate or testing report. Q:What’s the delivery time? A: Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your quantity. Q: What’s the standard cable length? A: Its standard length is 4m. But it can be customized. Q: May I know your warranty? A: Yes, usually it’s 1 year. We can send you detailed warranty document if needed.
With rich experiences in tackling problems, Veinasa aims to provide a package of meteorological solutions to your needs, whatever problems you encounters, Veinasa team always stand by your side.
Just click the below picture to send us inquiry, to know more, or get the latest catalogue and competitive quotation. Do not hesitate!
